GeckoTeq Click Panel System PVC - Set

GeckoTeq is proud to introduce the Click Clip Panel Connector System – PVC. From decades of experience by a leading Danish company in the fastening systems sector, the Click Clip Panel Connector System - PVC is born!

The GeckoTeq Click Clip Panel Connector System - PVC is the revolutionary patented plastic snap fastening system that allows you to quickly connect panels and coverings by simply pressing. Any attachment takes place by exerting a slight traction on the panel. The Click Clip Panel Connector clip system allows for a concealed mechanical fixing, making the union of two parts quick and reliable.

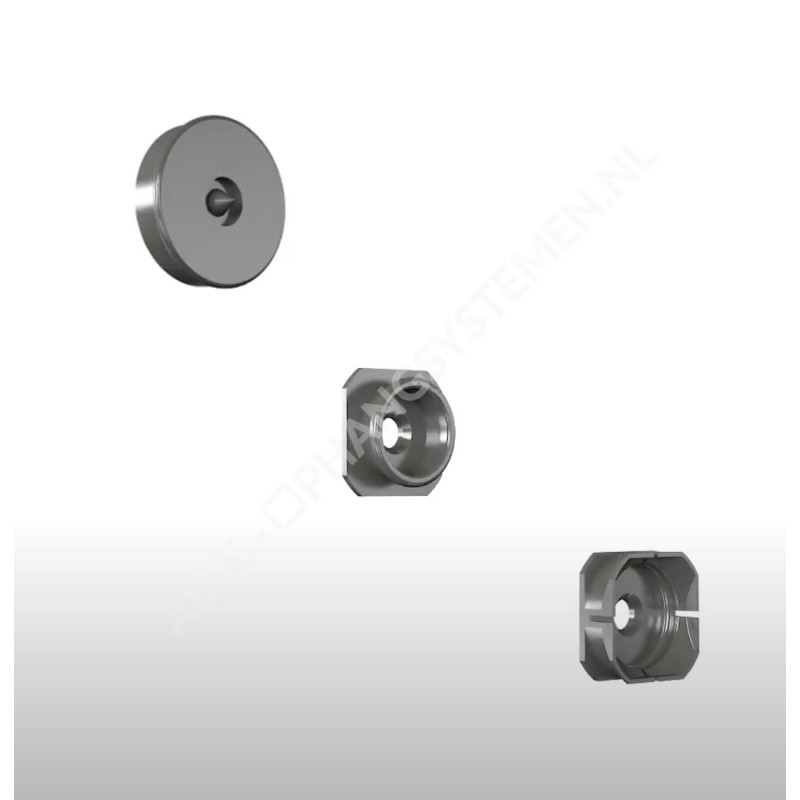

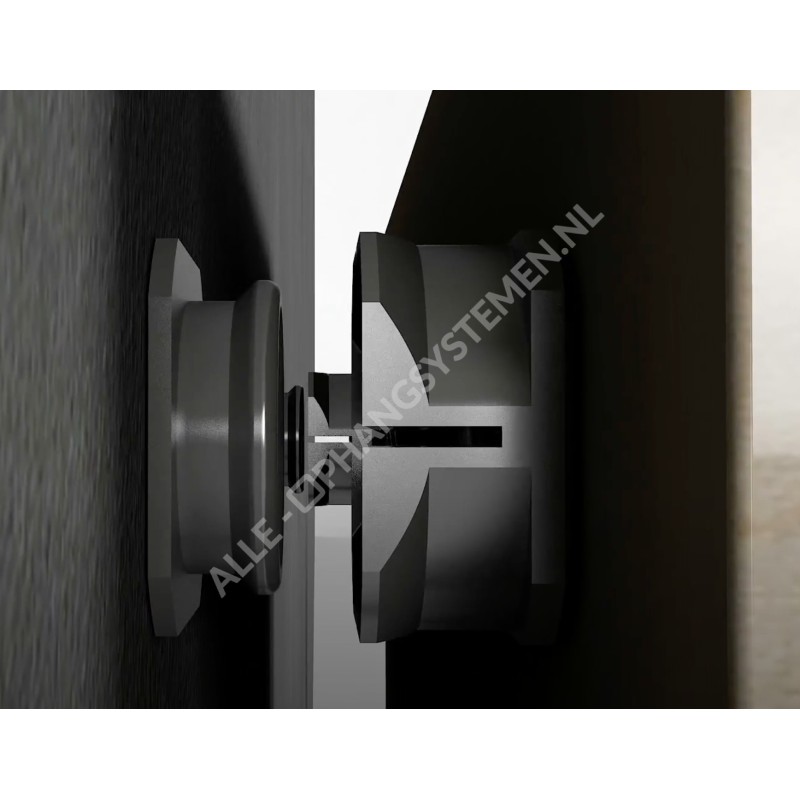

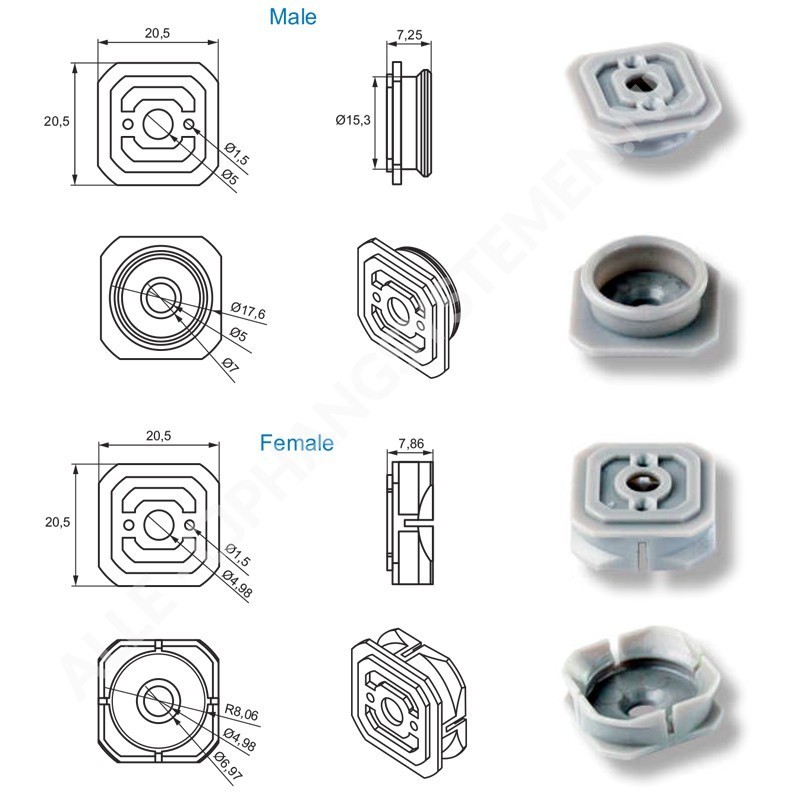

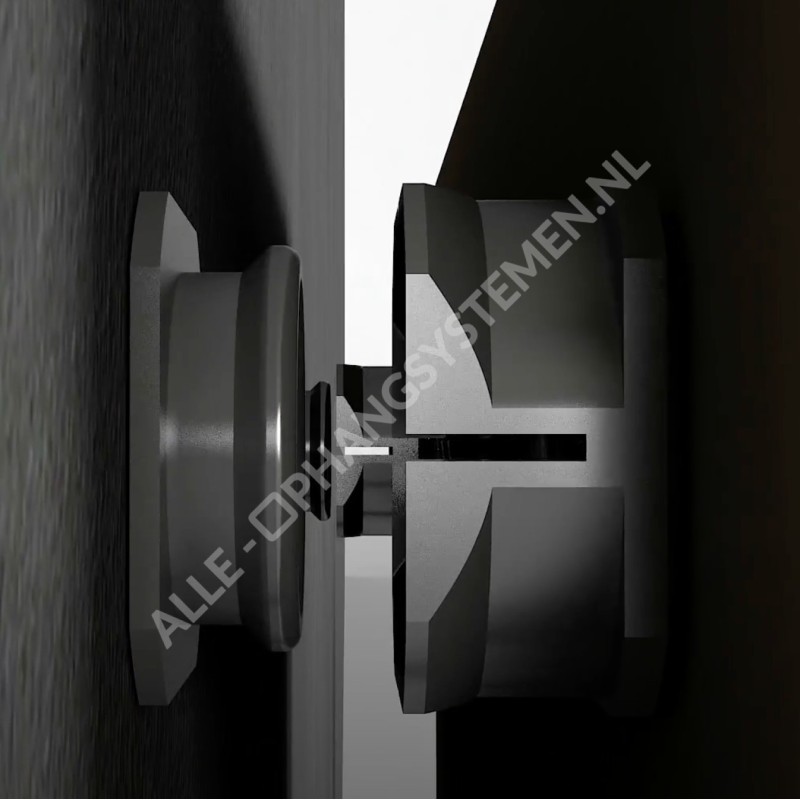

The GeckoTeq Click Clip Panel Connector System – PVC consists of 3 parts, a male-female set, both made from Polyvinyl Chloride, with a special profile suitable for quick connection between them. And an optional Centre Point Locator Disc, to be able to align the male-female components seamlessly.

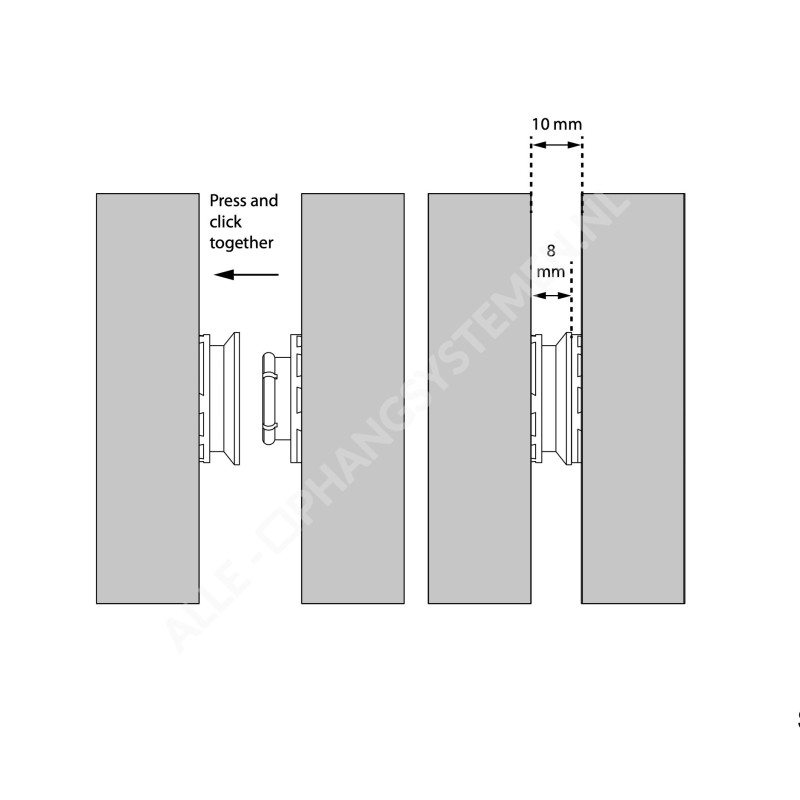

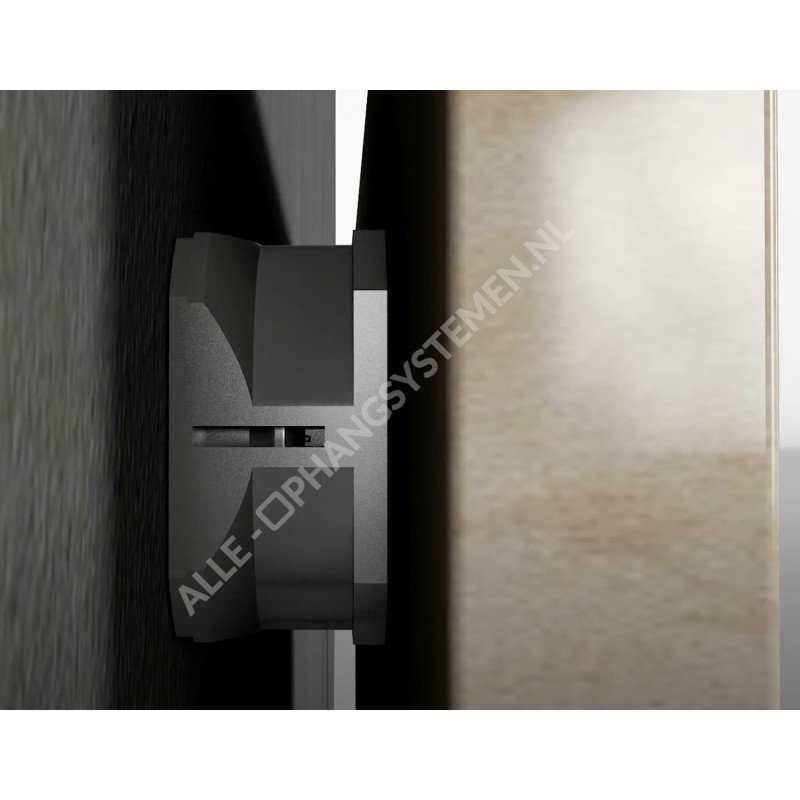

The GeckoTeq Click Clip Panel Connector System – PVC is installed by screwing or bonding. The clips have a release force of 5kg, that varies depending on the panel materials used. Once installed the distance between the 2 panels will be 10,0mm, but one of the components can also be recessed, reducing the distance to 2,0mm.

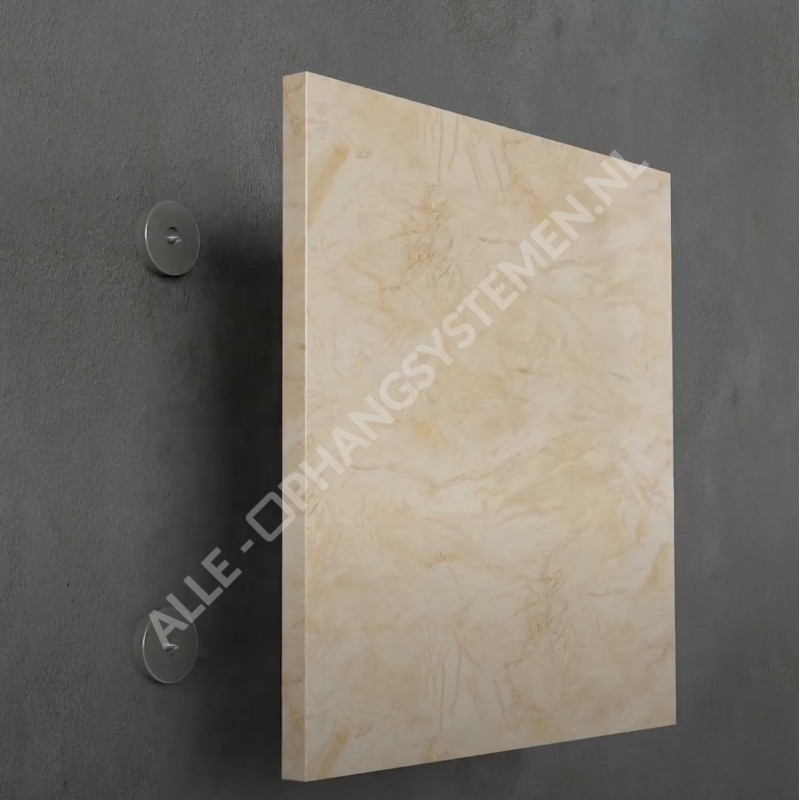

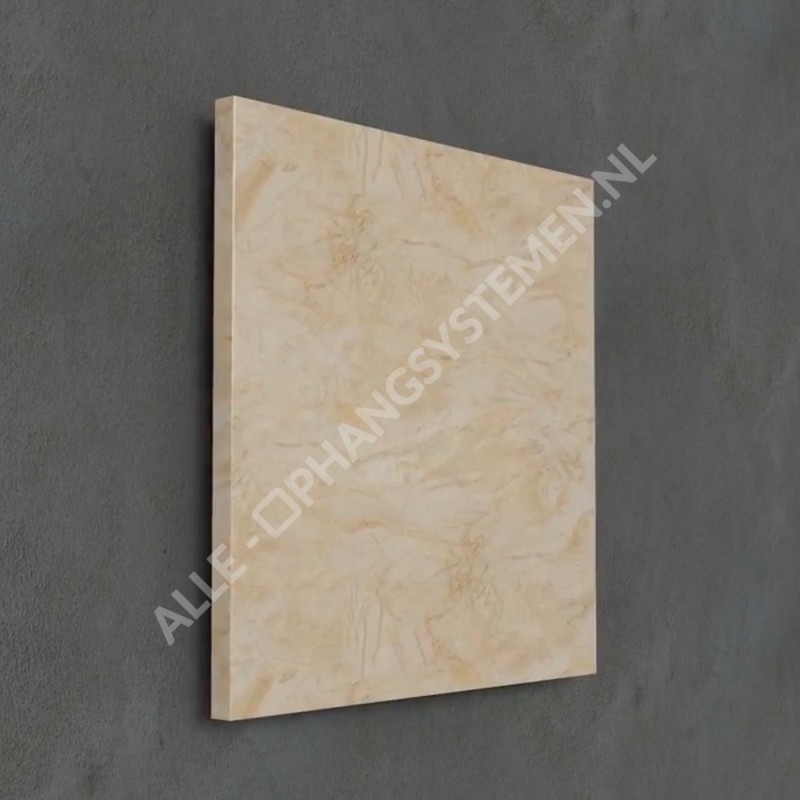

The GeckoTeq Click Clip Panel Connector System – PVC can be used for paneling, false ceilings, removable coverings, removable seats, furniture, doors, advertising and desktop customizations, etc.

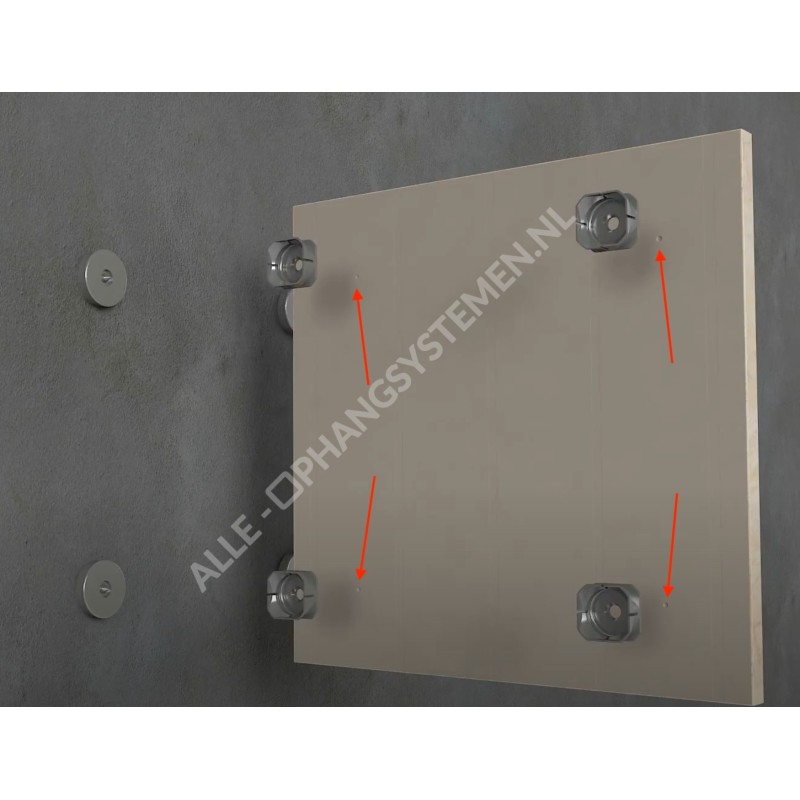

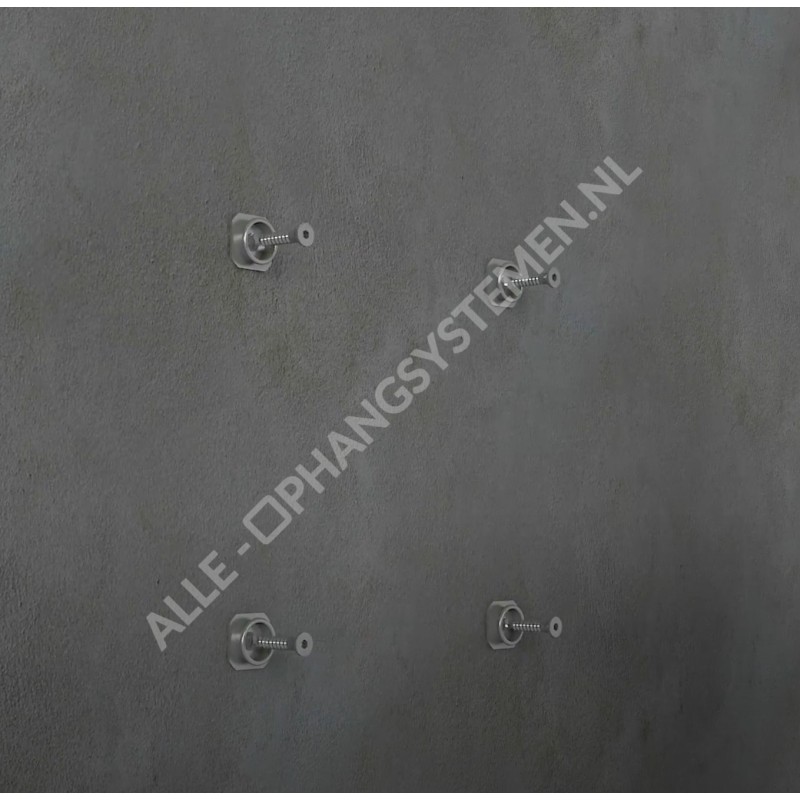

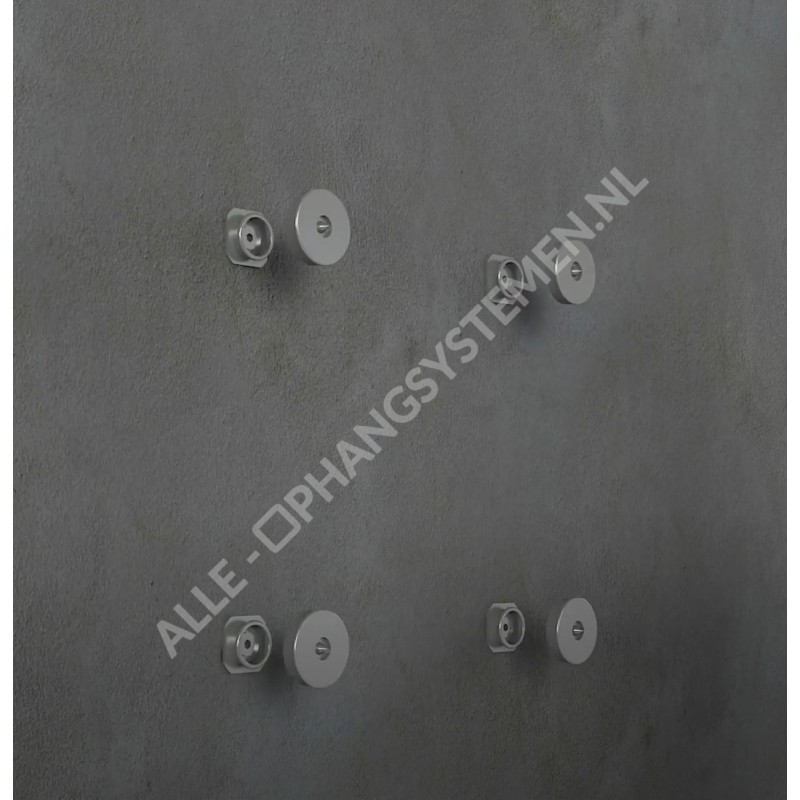

To obtain a firm, but above all a safe connection, it is our advice - depending on the type of installation, the nature of the panel and the structure of the wall - to place a connector at least every 30cm, but at most every 60cm. The distance from the edge of the panel and the center can therefore also vary.

The GeckoTeq Click Clip Panel Connector System – PVC strong points are:
Quick and easy installation
Flexibility of use everywhere
Minimum overall dimensions
Can be used in every industry
Corrosion resistant
